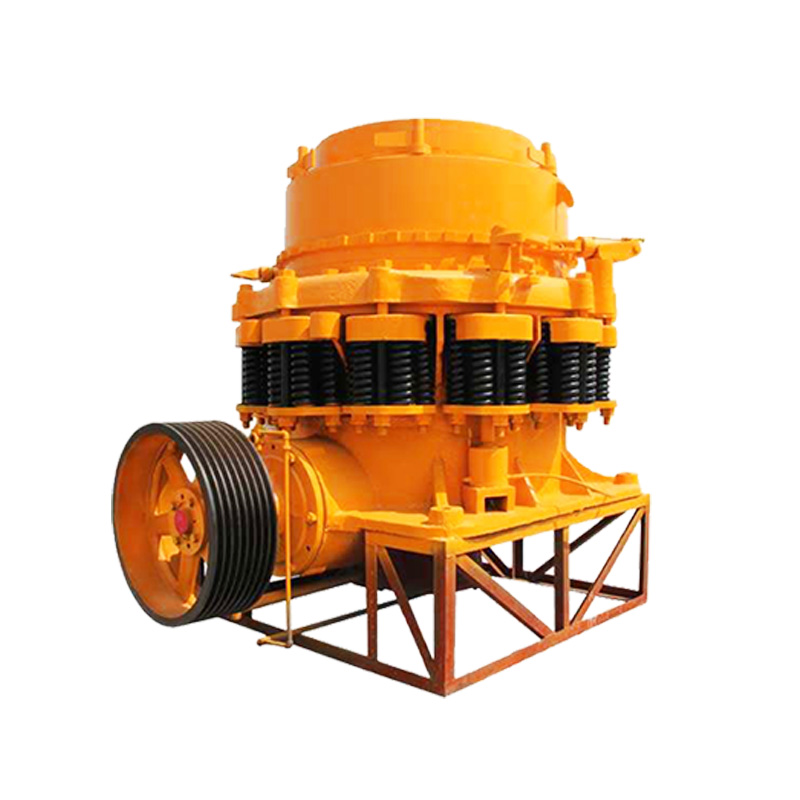

Cone crusher, adopting new-concept technology, can meet different material and new process requirement of “more breaking, less grinding”. Such crusher has good features of large breaking ratio, even and fine discharge size, low power consumption without much demand for water content of material. It is widely used in many industries such as metallurgy, construction, water and electricity, transportation, chemistry and building material for crushing all kinds of ores and rocks with tough hardness and over mid-hardness.
The developed and produced PYG200 high efficient cone crusher passed provincial new products identification in Jan. 2010.
Type
|
Dia of bottom and of conical crushing size (mm)
|
Max. feed size (mm)
|
Adjustable range of discharge opening (mm)
|
Crushing capacity
(t/h)
|
Electric motor
power
(kw)
|
Speed of
eccentric shaft
|
Weight
(t)
|
Overall
dimension
(L*W*H) (mm)
|
|
PYB
|
600
|
600
|
65
|
12-25
|
40
|
30
|
356
|
5
|
2234*1370*1675
|
PYD
|
35
|
3-13
|
12-23
|
5.5
|
2234*1370*1675
|
||||
PYB
|
900
|
900
|
115
|
15-50
|
50-90
|
55
|
333
|
11.2
|
2692*1640*2350
|
PYZ
|
60
|
5-20
|
20-65
|
11.2
|
2692*1640*2350
|
||||
PYD
|
50
|
3-13
|
15-50
|
11.3
|
2692*1640*2350
|
||||
PYB
|
1200
|
1200
|
145
|
20-50
|
110-168
|
110
|
300
|
24.7
|
2790*1878*2844
|
PYZ
|
100
|
8-25
|
42-135
|
25
|
2790*1878*2844
|
||||
PYD
|
50
|
3-15
|
18-105
|
25.3
|
2790*1878*2844
|
||||
PYB
|
1750
|
1750
|
215
|
25-50
|
280-480
|
160
|
245
|
50.3
|
3910*2894*3809
|
PYZ
|
185
|
10-30
|
115-320
|
50.3
|
3910*2894*3809
|
||||
PYD
|
85
|
5-13
|
75-230
|
50.2
|
3910*2894*3809
|
||||
PYB
|
2200
|
2200
|
300
|
30-60
|
59-1000
|
280-260
|
220
|
80
|
4622*3302*4407
|
PYZ
|
230
|
10-30
|
200-580
|
80
|
4622*3302*4407
|
||||
PYD
|
100
|
5-15
|
120-340
|
81.4
|
4622*3302*4407
|
Technical parameter of multi-cylinder hydraulic cone crusher
|
||||||||
Model
|
dia. of cone bottom
(mm)
|
size of feed opening
(mm)
|
Recommended max. feed size
(mm)
|
Discharge range opening
(mm)
|
Capacity
(t/h)
|
Motor power
(kw)
|
Overall dimension
(L*W*H) (mm)
|
Weight
(t)
|
PYY-BD1217
|
|
170
|
145
|
20-50
|
110-168
|
|
|
23.5
|
PYY-BD1211
|
115
|
100
|
8-25
|
42-125
|
22.26
|
|||
PYY-BD1206
|
60
|
50
|
3-15
|
18-105
|
24.2
|
|||
PYY-DC2211
|
|
110
|
85
|
5-15
|
125-350
|
4660*3300*~4752
|
89.24
|
|
PYG200
|
204
|
173
|
19-38
|
200-250
|
220
|
2850*1836*2050
|
~18
|
